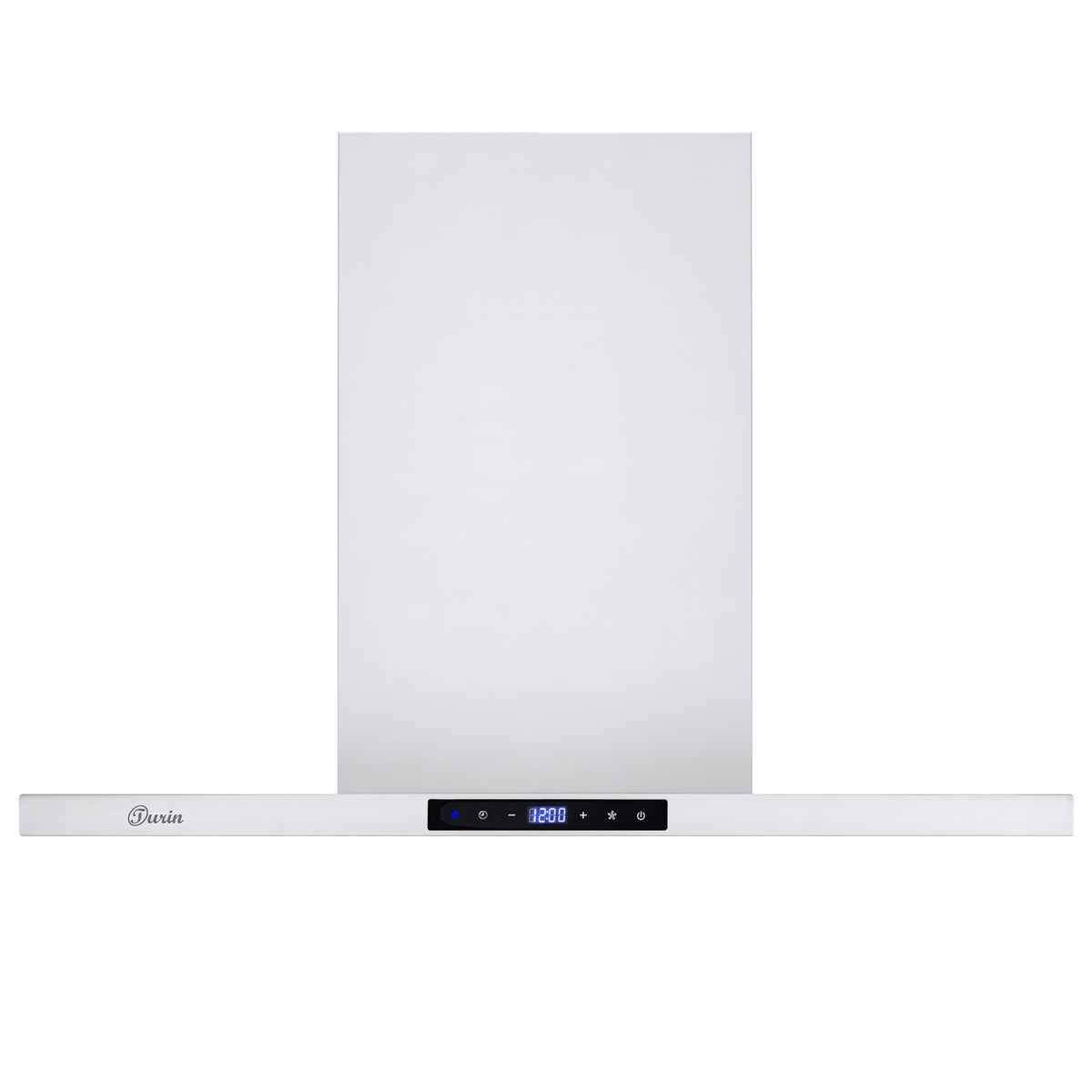

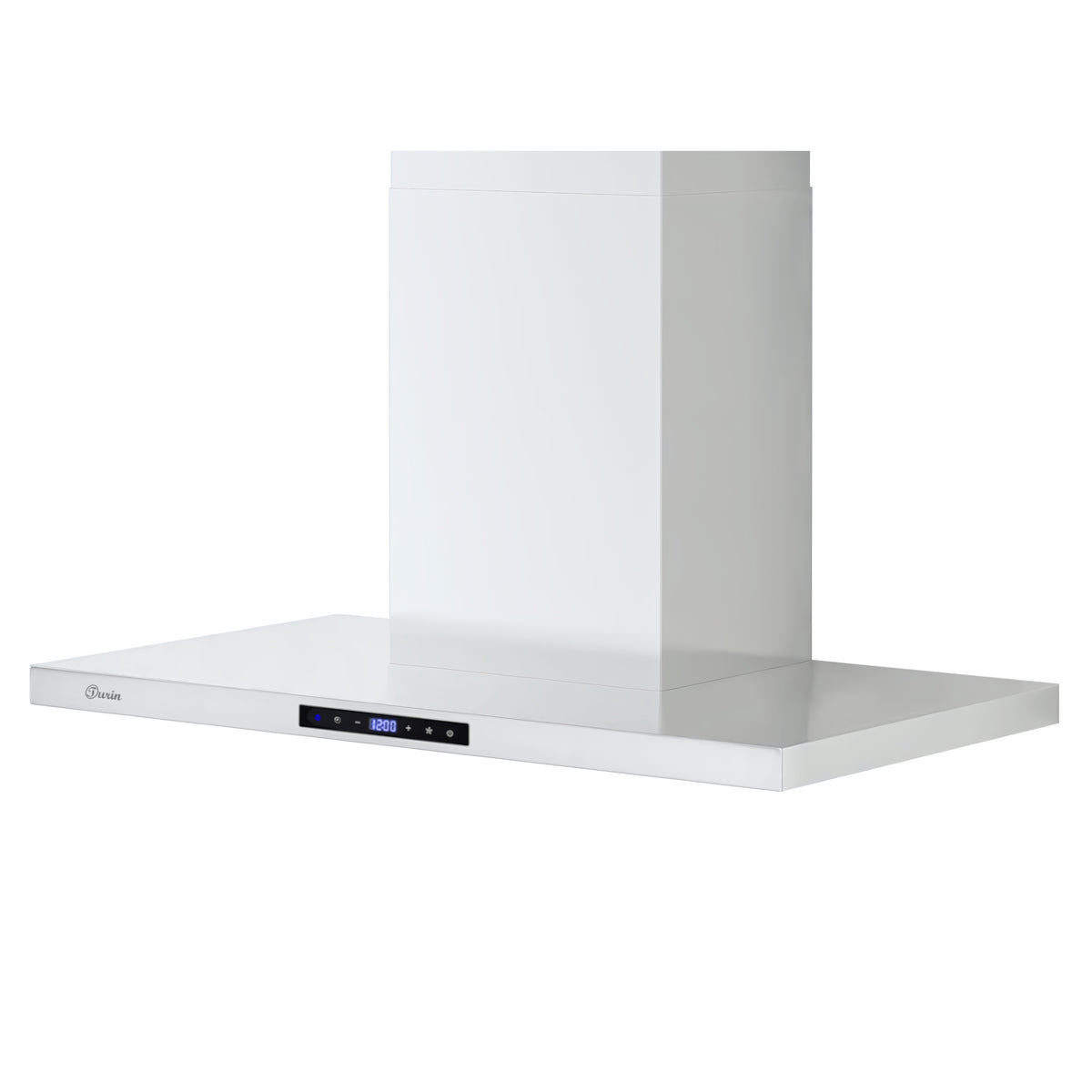

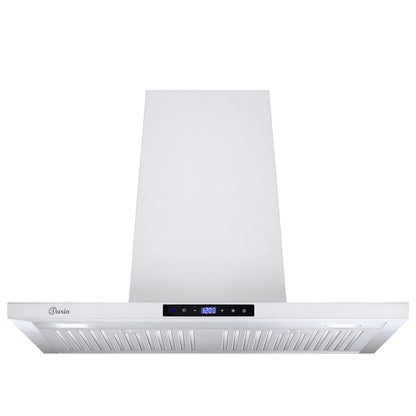

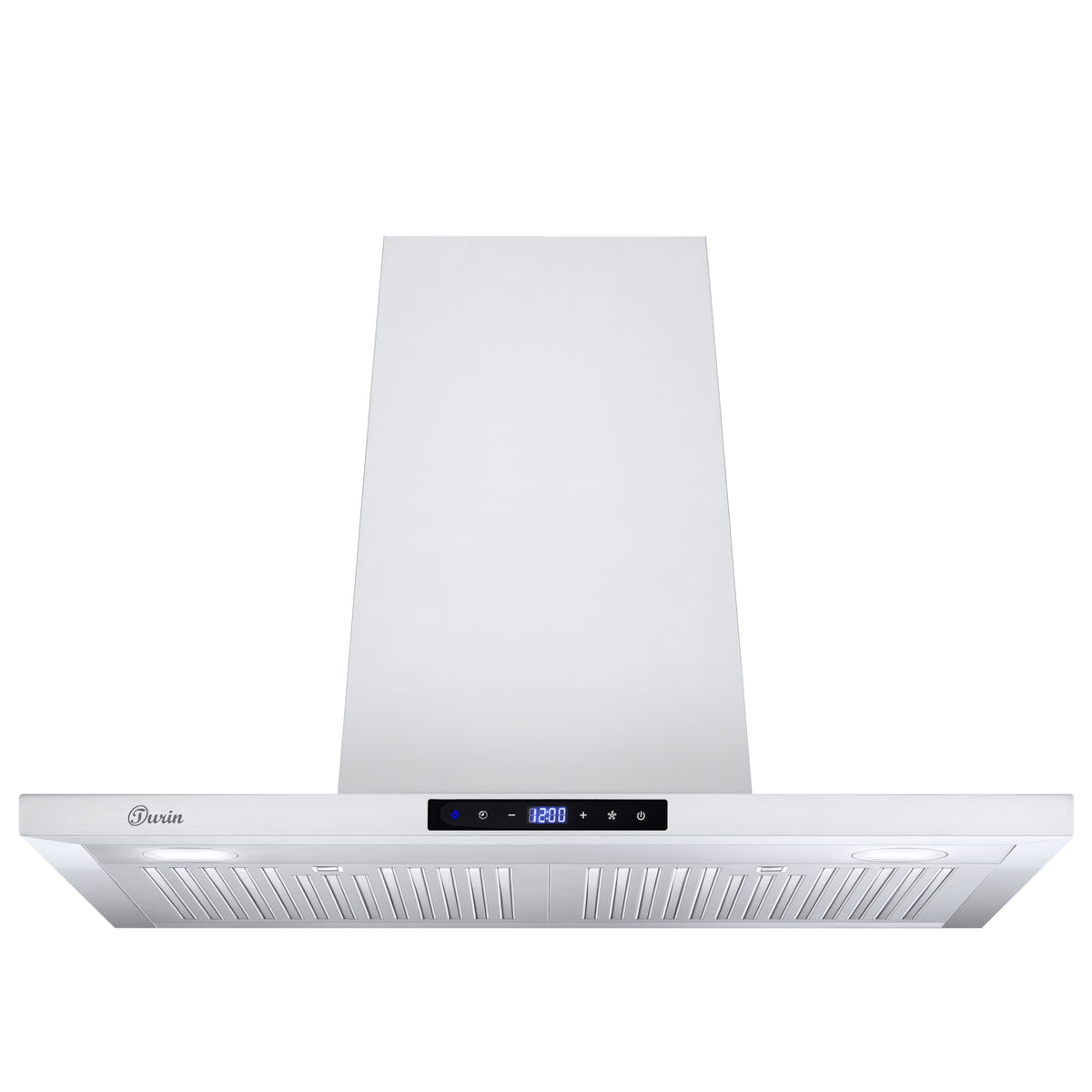

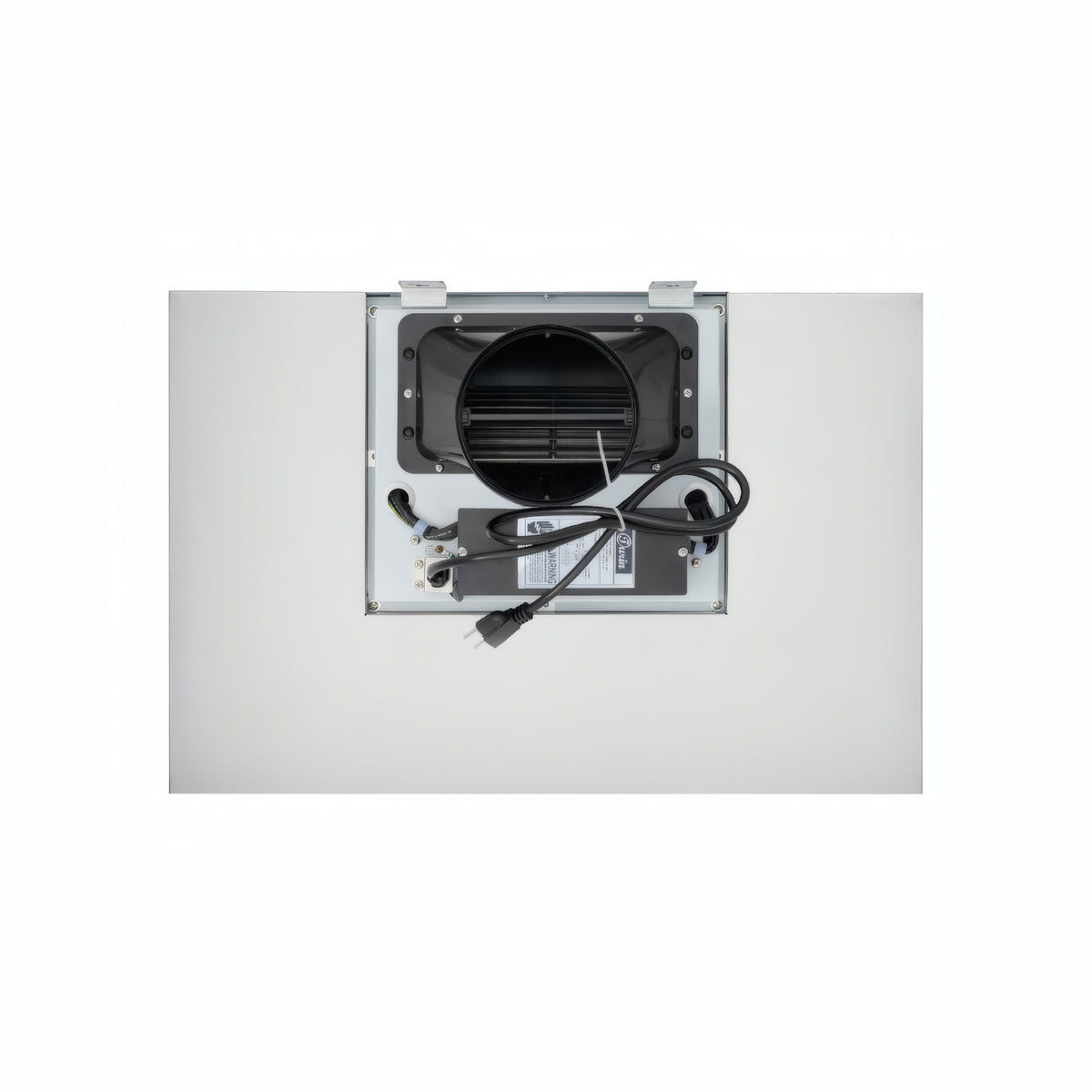

Astra PRO 30" - Wall Mounted Range Hood 860 CFM
Description
This modern and minimalist range hood is designed to enhance any contemporary kitchen with its sleek appearance and advanced functionality.
Features :
- Mounting Type: Wall-Mounted
- Finish: Stainless Steel
- Maximum Airflow: 860 CFM

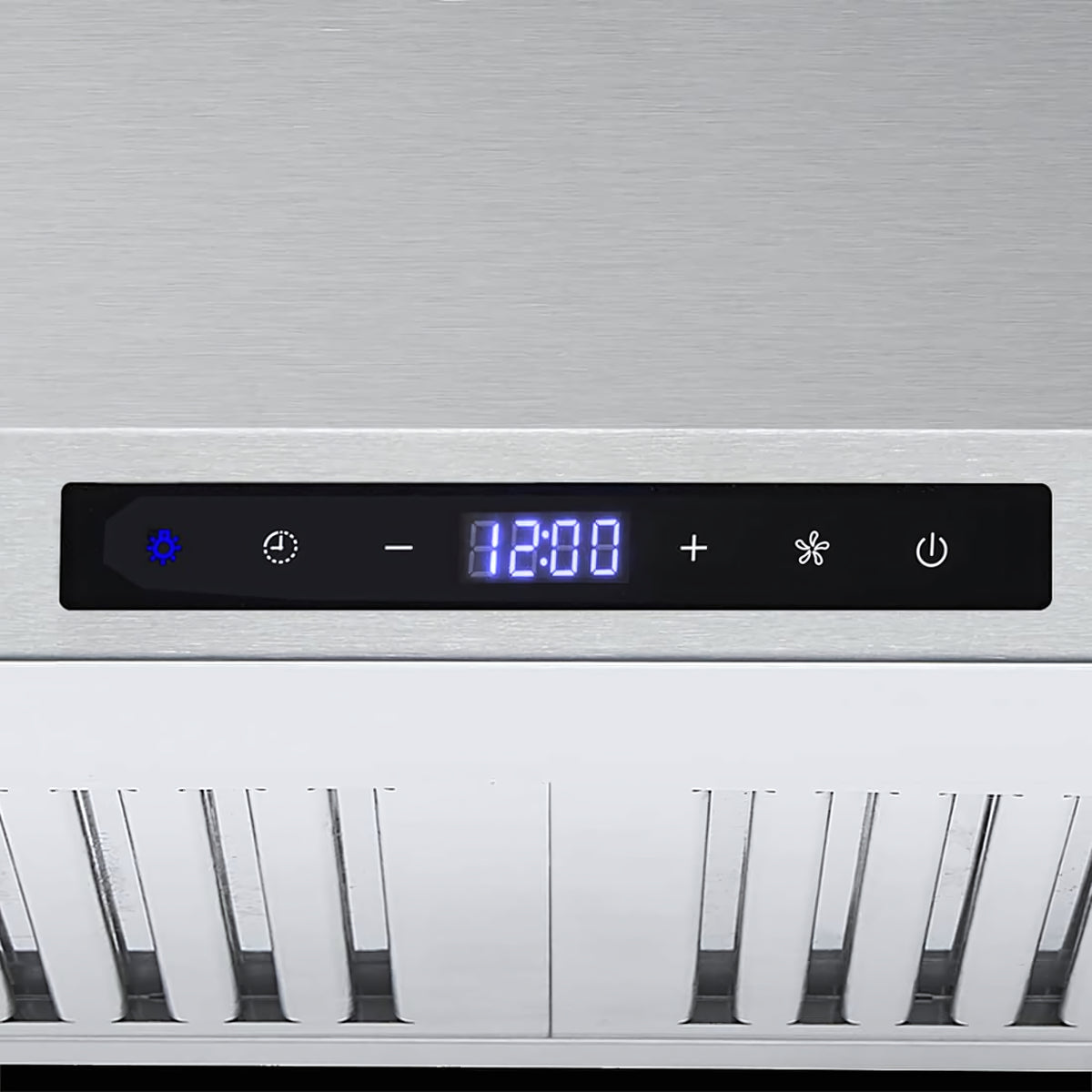

- Control Panel: Four-speed Soft Touch Digital with programmable shut-off timer

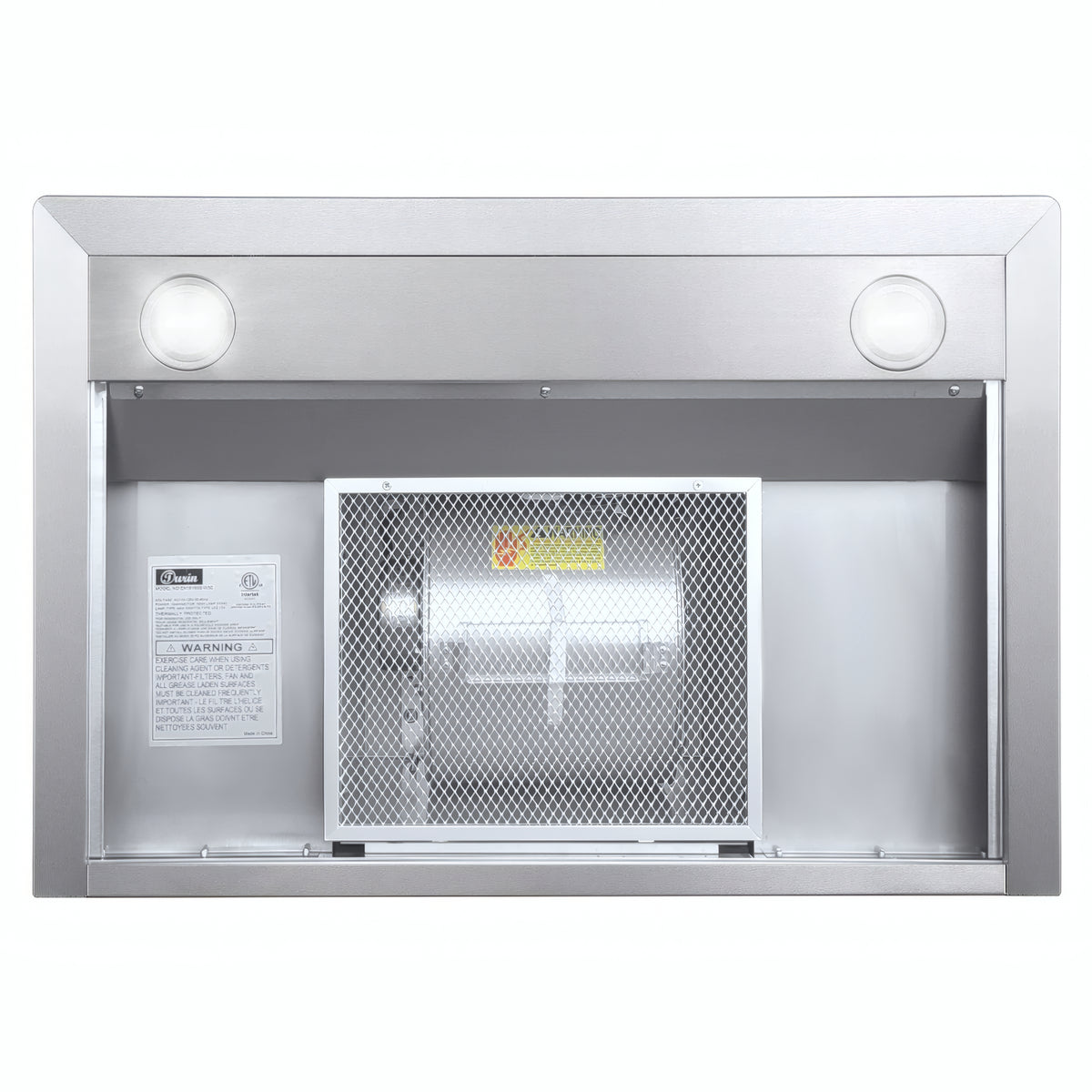

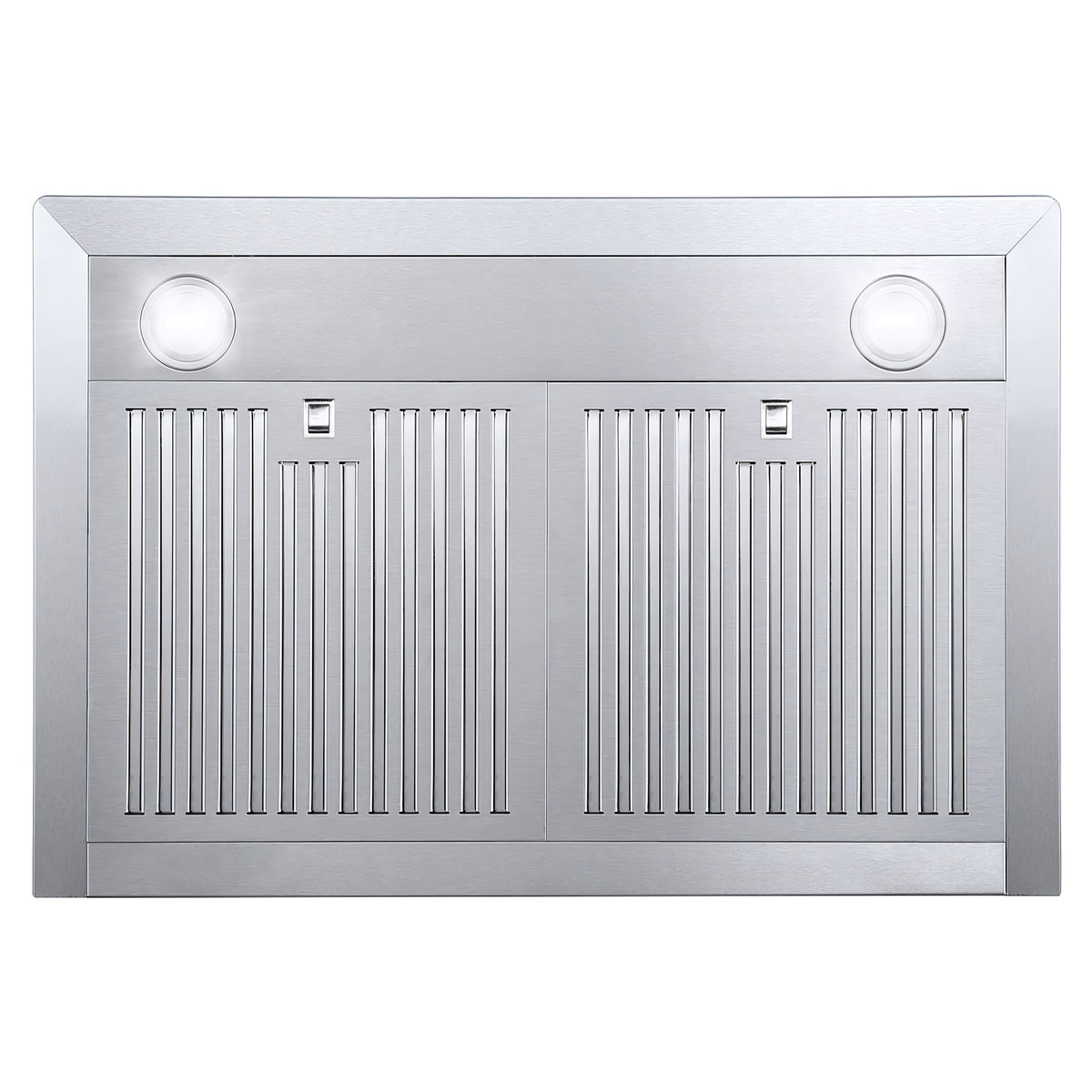

- Filter Type: Stainless steel baffle filters (removable and dishwasher safe)
- Ventilation Type: Ducted (ventilation to outside only, no recirculation options)
- Exhaust: 6-inch round (top vent)
- Noise Level at First Speed: 45 dB (4 sones)
- Lights: Two 1.5-watt LED lights (12V)
- Power: 120 V / 60 Hz with standard 3-prong plug
- Compatibility: Suitable for gas, propane, electric, and induction stoves
-
Certifications: ETL
Technical Drawing
INSTALLATION MANUAL & WARRANTY
Compatible parts
Circuit Board – PHC-097
Round Duct Connector – PHC-041
110V LED Replacement Lights for Turin Range Hoods – Set of 2
Stainless Steel Baffle Grease Filters – 13.7" × 14.0" (Set of 2) - PHC-084
Replacement Power Cord – PHC-019
4-Speed Electronic Replacement Control Panel – PHC-095
Grease Collection Cup – PHC-089
Wiring Junction Box – PHC-020
Round Duct Outlet Adapter – PHC-037
